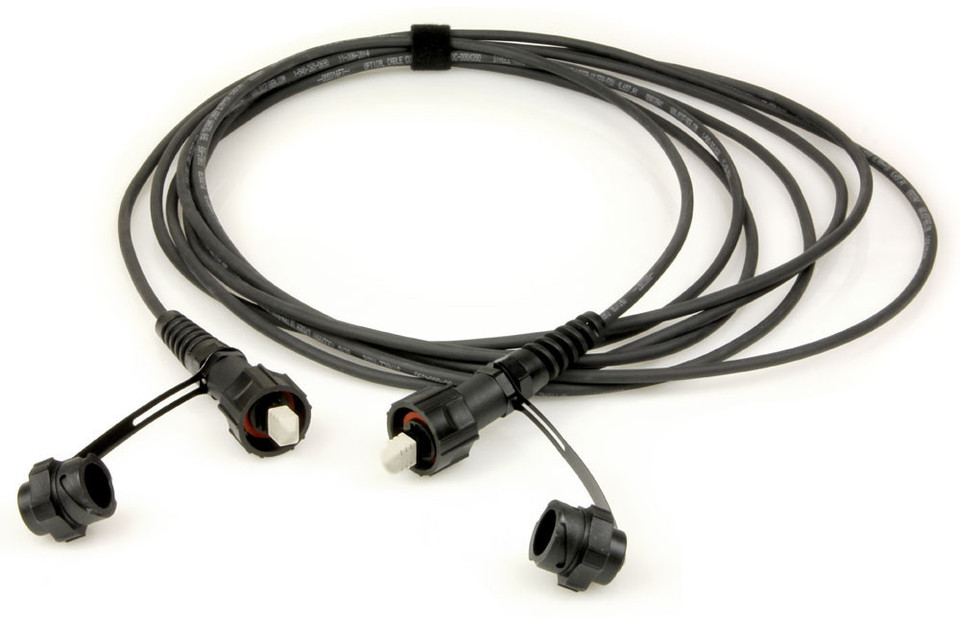

IP-Series MPO Assembly, 12 Fiber, Singlemode 9/125 OS2, Indoor/Outdoor

List Price: $304.67

$203.12

(You save $101.55 )

Description
Downloads

Description

IP-Series MPO Assembly, 12 Fiber, Singlemode 9/125 OS2, Indoor/Outdoor

Introducing the IP-SERIES, an effective and low cost connector for harsh environmental applications.

The IP-Series Connector is designed to exceed the requirements of ODVA, the connectors meet IP 68 environmental sealing ratings and are the ideal choice for a low cost/easy to use solution in Industrial, Fiber to the Antenna (FTTa), or any other harsh environmental applications.

The IP-Series Connector is designed according to the IEC 61076-3-106 interface standard, which allows mating to other similar mechanical locking systems.

Incorporating the IP-Series connector yields exceptionally low insertion loss for Singlemode applications and provides connector color coding options in Multimode applications for differentiation of OM3 or OM4 constructions.

Features

Cost effective solution for in house termination
IP68 Water immersion and Dust protection for hash environment
Wide range of operational temperature for outside plant -40°C/+70 per
Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
Chemical Resistance
Intermatable to other Industrial adaptors per IEC 61076-3-106
Simple assembly requiring no special tools
Durable mechanical mating, minimum of 500 matings
