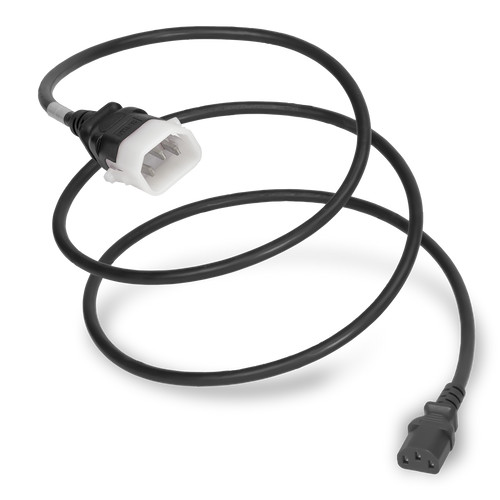

P-Lock Secure Locking Power Cord, C14 (P-Lock) to C13, 14 AWG, 15 Amp, 250V, SJT Jacket, Orange
MSRP:
$24.66 - $38.36
$16.44 - $25.58
Speak to one of our experts.
Description: Power Cord, P-LOCK, C14 Locking (P-Lock) to C13, 15A, 250V, 14awg-3c SJT, BLACK
Our 'H' series C14 (P-Lock) to C13 power cables are rated at 15 amps and are a heavy duty version of our standard 'F' series 10 amp power cables. The 15 amp C14 C13 is typically used when powering high-end computing devices (computers, routers, switches, servers, etc). Many high-end servers (typically 2U form factor and up) have power supply units that draw more than 1000W per unit. Depending on the operating voltage of the device and your rack setup, this may be greater than the 8 amps max continuous draw allowed for a 10 amp cable. (1000W / 120V = 8.33 amps). In these scenarios, this 'H' series 15 amp product line will be more than enough to power these devices.
If operating in a data center, or high-density networking closet, it is critical to choose the correct length power cable to increase the efficiency of your installation. Choosing the shortest cable possible for your installation will allow you to reduce line loss (loss of energy due to resistance in the cable) as well as decrease the volume occupied by the cordage. Cubic inches are a hot commodity in high-density racks, by choosing the shortest cable possible you will increase airflow throughout the rack, increasing the efficiency of the PSU's on the server.
Color-coded power cables are typically used to help identify cables in a rack. For example, a red power cable can be used to identify a primary PSU, will a blue power cable can be used to identify a secondary PSU. This can be critical in high availability data centers, where accidentally unplugging the correctly operating primary power supply, instead of the failed secondary power supply, can cost organizations thousands, even millions of dollars. We stock a wide array of Red, Blue, and Black P-Lock power cords and also have yellow and green cords available upon request.
| (1) Server Technology Rack Mount PDU | Rack Mounted PDUs are the standard way to distribute power to many devices in a rack. P-Lock C14 Plugs are designed to securely lock into place on the PDU, ensuring the cable does not become disconnected to due vibration or other factors. |
| (2) P-Lock C14 Plug (Male) | The P-Lock C14 features tabs on the outside of plug, allowing it lock into a matching receptacle. |
| (3) C13 Connector (Female) | The C13 connector will mate with a matching C14 inlet, typically found on servers, routers, switches, and your standard desktop computer. |
| (4) Server, Router, Switch, Computer, Equipment | Many small appliances use a C14 inlet to provide power to the PSU (Power Supply Unit). Our C13 connectors will mate with any C14 inlet on your small appliance. |
General Information:
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer. The iec 320 c13 c14 plug and connector are synonymous with Information Technology equipment primarily, but the C13 can be found powering equipment like medical devices and gaming consoles.
What does the IEC 60320 C13 Connect to?
 |
 |
The IEC 320 type C13 connector is designed to connect to the IEC 320 C14 plug and inlet. The C14 Plug is commonly found on power cords located in office, commercial or data center settings since the C13 inlet is usually only found in those environments. The C14 Inlet is commonly found on a variety of IT Equipment like monitors, switches, printers, power adapters, and more. |
Our power cord sets are manufactured under an ISO 9001 quality management system to ensure that you get the same outstanding quality with on every order you place.
All of our NorthAmerican use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.
World Cord Sets strives to deliver the best quality products for the lowest cost, to show our commitment to quality and our understanding of customers expectation for consistence of quality we obtained the UL certification. All of our North American use Power Cord Sets are UL listed under E503529. This means that you can be sure that all of our power cord sets are of the highest quality and are certified for use in the United States.
Why do we offer a lifetime warranty?
We offer a lifetime warranty because we know that it won't have to be used. Our products are manufactured using only the highest quality components, and, undergo rigorous quality assurance inspections and testing to ensure all of our products meet our exacting standards. Our lifetime warranty gives you peace of mind that your purchase is 100% guaranteed to work.
What does the warranty cover?
All cords, cables, patch panels, and adapters sold on this website in original unmodified condition are covered under this warranty. Warranty does not cover damage caused by misuse.
How does the warranty work?
To use the lifetime warranty, simply request an RMA and send your defective material back to us and we will either repair or replace the goods and return them back to you in working condition.
