Senko XPFit Plus, SC, Pre-Polished Field Installable Connector, 12 Pack


Senko

Senko XPFit Plus, SC, Pre-Polished Field Installable Connector, 12 Pack

Hurry up ! Only left in-stock.
SKU: 318-xxx-xxx-12
Weight: 0.10 LBS
$149.67 - $1,166.98
$108.64 - $1,054.50
Adding to cart… The item has been added

Senko XPFit Feild Termination Connector 12 Pack -

The XP Fit Uni SC is a pre-polished, pre-assembled connector compatible with the standard SC connector. The universally designed cable jacket clamping feature allows for various cordage types to be terminated using just one connector. In addition, an internal mechancal grip gently but effectively holds the fiber in place without the need for adhesives.The XP Fit Uni SC makes field installations quick and easy, while reducing the need for multiple connector kits for different applications.

Each 12 Pack comes with:

  • (12) SC Connector Body and Pre-Terminated 2.5mm Ferrule
  • (12) 900um Boots
  • (12) 250um to 900um Buffer Tubes
  • (12) Ferrule Dust Cap
  • (12) Clear Widge Plate Connector Holders
  • (1) Fiber Holder Jig (seen below)

 connector breakdown

Assembly Procedure

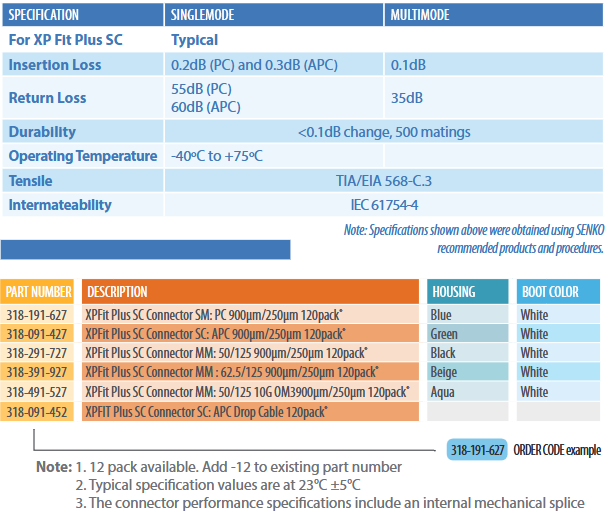

Specifications Chart

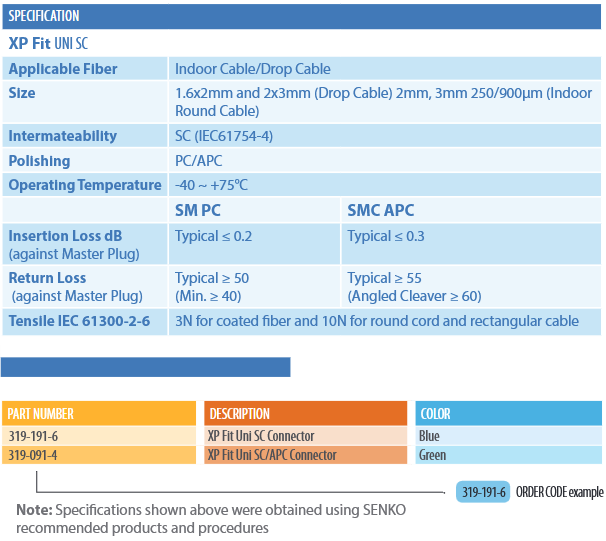

Specifications part two

Certifications
