HD8² HDReadyLink®, Cassette to Cassette, OM4, 8 Port Shuttered LC/UPC Duplex, 16 Fiber

click to zoom in

HD8² HDReadyLink®, Cassette to Cassette, OM4, 8 Port Shuttered LC/UPC Duplex, 16 Fiber

Item#:
T-4LCS802LCS802F0010
List Price: $850.07
$547.83
(You save $302.24 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval

Weight:

1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft
Additional Feet:
x 1.73 per/ft
Recalculate
Customer Service

Need Help?

Speak to one of our experts.

T-4LCS802LCS802F0010 - HD8² HDReadyLink®, Cassette to Cassette, OM4, 8 Port Shuttered LC/UPC Duplex, 16 Fiber - Image 2

HD8² HDReadyLink®, Cassette to Cassette, OM4, 8 Port Shuttered LC/UPC Duplex, 16 Fiber

List Price: $850.07
$547.83
(You save $302.24 )

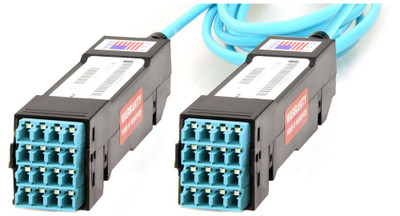

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyLink®, 16 Strand 50/125 OM4, Cassette to Cassette, 8-Port LC/UPC to 8-Port LC/UPC, Flipped (Type C), With integrated HDReadyPull® Pulling Eye

Connector Side A
LC/UPC Connector Side B
LC/UPC
Ferrule Type Side A 1.25mm Ferrule Type Side B
1.25mm
Port Count Type A 8 Port Count Type B
6
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.20dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.08dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM4 50/125μm Wavelength 850/1300nm
Fiber Count 16 Fiber Grade Corning ClearCurve Glass
Polarity Rollover (Type B) Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4 100G-SWDM4
150 Meter 150 Meter 400 Meter 100 Meter

Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

BENEFITS

  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes
  • Lower db loss because of the reduced connection points
  • *Shuttered LC couplers reduce dust and increase eye safety

*The HD8² takes advantage of Senkos dustproof LC adapter with internal shutter in its cassette design. The internal shutter is actuated when you plug the LC patch cable into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.

TRUNK CABLE FEATURES

  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
