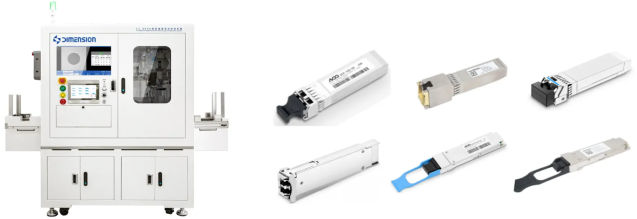

1.6T/800G MPO Transceiver Visual Inspection and Cleaning Automated Work Station

Product Overview:

A fully automated intelligent system integrating auto-loading/unloading, cleaning, and inspection. Features high efficiency, reliability, and rapid Return on Investment, commonly used in technical/business contexts for brevity, with industry-leading detection capabilities. Proprietary auto-cleaning technology ensures simple operation and maintenance.

Main advantages:

• Comprehensive Automation: Achieve automatic cleaning, visual inspection, and loading/unloading for a variety of high-speed optical modules.
• Precision Detection: Accurately identify contamination, scratches, defects, and damages with advanced detection capabilities.
• Versatile Cleaning Methods: Utilize pen-type cleaning and/or compressed air and solvent cleaning for optimal module cleaning.
• Flexible Fixture Design: Adapt to changing requirements seamlessly with a flexible fixture design, allowing for quick re-configuration.
• Patented Cleaning Technology: Benefit from a patented cleaning technology that ensures a high pass rate, enhancing overall performance.
• High Precision, Efficiency, and Stability: Experience a system that delivers high-precision results with efficiency and stability at its core.
• User-Friendly Operation and Maintenance:
  • Operate and maintain the system with ease, making it accessible for users at all levels.
• Diversified Data Storage:
  • Ensure traceability and maintain stringent quality control through diversified data storage options.

Main Applications:

Auto cleaning and visual inspection for 1.6T/800G/400Goptical module performance parameter

• Dimensions: W2200 x D1400 x H1900mm
• Production Efficiency: ≤ 20 seconds(12 cores)
• Cleaning Yield Rate: ≥ 95%
• Defect Detection Accuracy: ≥ 99.5% for defects ≥ 1 μm
• Power Input: 220V, 50/60Hz
• Input Air Pressure: 0.5-0.65MPa

Function:

• Automatic cleaning
• detection
• Loading/Unloading of 1.6T &800G high-speed optical modules

Testing Includes:

• Dirt
• Scratches
• Damage

Cleaning Methods:

• Pre-cleaning with a cleaning pen
• Cleaning with a cleaning machine solution

Tray:

• Tray loading and unloading
• Flexible fixture designs
• Rapid model conversion

High integration degree of automation process, considerable return on investment, stable performance, and simple operation and use.

Includes 2 weeks free site setup time. If more than two weeks, need to charged at 1,000USD per day, per/engineer.
