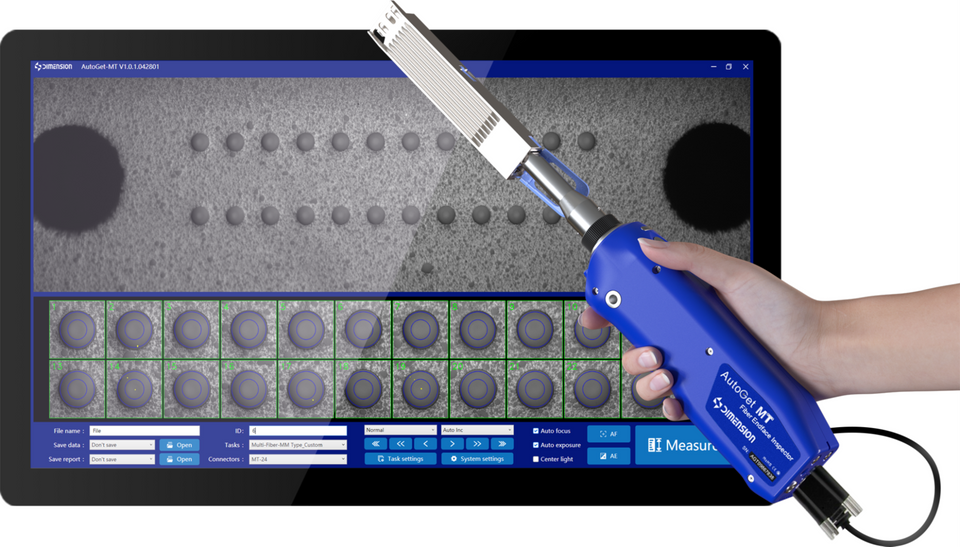

AutoGet MT Fiber Endface Inspector
Product Overview
With the breakthrough progress of CPO (co-packaged optics) technology, the deep integration of optical engines and chips has put forward higher requirements for the cleanliness and integrity of optical fiber end-faces. At this critical juncture of technological evolution, traditional detection methods are no longer able to meet the industrial needs of high integration and high reliability. The Autoget MT fiber endface inspector launched by Dimension Technology is designed to provide full-scenario intelligent inspection solutions for silicon optical integration, 1.6T/800G high-speed optical modules and next-generation high-density connectors. The equipment adopts a large-field optical system, which can completely image the multi-fiber core end face at one time, and automatically identity's micron-level scratch defects with ultra-clear resolution lens and AI analysis algorithm. As a key quality inspection tool in the implementation of CPO technology, AutoGet MT redefines the on-site inspection standards of optical fiber end-faces with the three advantages of portability, micron-level accuracy, and fully automatic operation, providing reliable guarantee for the deployment and operation and maintenance of optical interconnection in data centers, and helping to build a more efficient and intelligent future network infrastructure.
Main Features
- Large field of view Multi-fiber core full-end face imaging at one time
- Precise measurement in seconds Micron-level defects are not missed
- Full automation Focus, measurement and analysis are completed with one click
- Flexible and portable Ergonomic design for easy inspection
Main Application
- Data centers
- 5G optical network construction and maintenance
- Large-field testing in university research laboratories
One screen to see the whole picture of the fiber core
AutoGet MT has a 4.6 mm × 1.6 mm large-field optical system that can cover the complete end face of multiple fiber cores at one time, and simultaneously present the core structure, end face defects and surrounding conditions, achieving true full-field non-destructive testing.
Intelligent and efficient detection Micron-level defects have nowhere to hide
AutoGet MT is equipped with Dimension Technology's self-developed intelligent analysis system, which integrates 0.96μm single-pixel high-resolution optical imaging and efficient intelligent algorithms to accurately identify micron-level scratches. The system integrates automatic focus, automatic centering, automatic exposure and automatic measurement, and can complete the whole process of detection and analysis with one click, truly achieving a double breakthrough in detection efficiency and recognition accuracy in high-precision application scenarios such as CPO and 800G optical modules.
Ergonomic design for more comfortable handheld operation
AutoGet MT adopts a lightweight and compact design, the body conforms to the ergonomic curve, and the grip is comfortable and stable, making it easy to operate with one hand for a long time. The independent focus and shooting buttons are reasonably arranged, making it easy to achieve precise focusing and fast imaging, making on-site inspection more efficient and labor-saving.
One machine efficiently copes with full-scenario detection
AutoGet MT adopts a lightweight and compact design, the body conforms to the ergonomic curve, and the grip is comfortable and stable, making it easy to operate with one hand for a long time. The independent focus and shooting buttons are reasonably arranged, making it easy to achieve precise focusing and fast imaging, making on-site inspection more efficient and labor-saving.
One machine can handle diverse fibers
AutoGet MT truly realizes "one-machine coverage, all-fiber compatibility". In the deployment and maintenance scenarios of diverse optical fibers, AutoGet MT has become a reliable tool to meet the challenges of complex fiber types with customer-defined flexible configuration and powerful software and hardware support for complex fiber types in the face of complex fiber mix devices composed of conventional fibers, polarization-maintaining fibers, and dummy fibers.
Specifications
| Type | Parameter |
|
Field of view |
4.6 mm×1.6mm |
|
Defect size detection |
1um |
|
Effective resolution |
2um |
|
Magnification |
0.95 um/ px or 200x |
|
Focus |
auto |
|
Measurement time |
3.45 sec for MT12 3.55 sec for MT16 3.85 sec for MT24 |
|
Light source |
royal blue LED, 465 nm |
|
Camera type |
digital, USB3.0 |
|
Sensor type |
monochrome, 5472 x 3648,1"CMOS |
|
Live image |
19.2 fps full resolution |
| Power source | USB TypeC / DC 5V |
| Dimensions (L × W × H ) | (L)230mmx(W)34mmx(H)55mm |
| Weight | 450g |
| Operating temperature | -5℃~40℃ |
