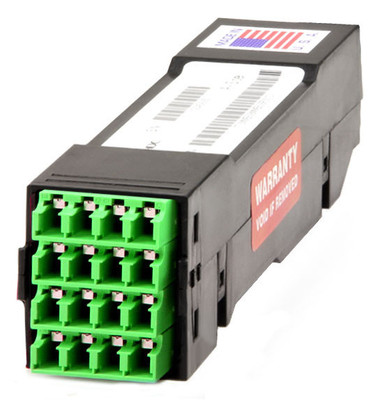

| Cassette Front |
LC/APC | Cassette Rear |
MTP/APC 12 Fiber Elite Low Loss |
| Port Count |
6 | Port Count |
1 |
| Insertion Loss Maximum Side A |
≤0.20dB | Insertion Loss Maximum Side B |
≤0.35dB |
| Insertion Loss Typical |
0.08dB | Insertion Loss Typical |
0.10dB |
| Return Loss | ≥60dB | Return Loss | ≥60dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 12 | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Polarity | Straigh (Type A) | Cable Outer Diameter | 900um |
| Cable Jacket | PVC | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| Wavelength |
1 Gb Distance Max. |
Wavelength |
10 Gb Distance Max. |
| 1310nm | > 25,000 Meters | 1310nm | 10,000 - 25,000 Meters |
| 1550nm | > 40,000 Meters | 1550nm | 40,000 Meters |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
