Kingfisher KI-TK082 Complete Fiber Testing Kit, Pocket, SM & MM 9000 - 600/1700 nm

SM MM TRANSMISSION TEST, INSPECT & CLEAN KIT KI-TK082

A fiber optic testing, inspection and cleaning kit, superb for low to modest transmission test volume on MM and SM systems.

Typical test, inspection & cleaning applications

• Optical power at 8 calibrated λ, -60 to +10 dBm range.
• Optical loss, using transmission equipment as the test source.
• Reporting software for cable loss (manual data entry).
• Oprtical continuity testing using the visible fault locator pen.
• Optical connector end-face inspection microscope x200.
• Optical connector cleaning tools & materials.
• Generally meets safety regulations & standards based test procedures.

For connector with APC polish, add 1 or more microscope adapter with specific connector type (LC, SC, FC, E2000) to your kit.

Connector & battery summary

SC & LC interchangeable connector adapters.
Meter accepts PC & APC polish.
Microscope accepts SC, LC and most 2.5 or 1.25 mm PC ferrules. Also OK for occasional APC use.
VFL accepts most 2.5 mm PC/APC connectors.
Meter 2 x AAA alkaline. Run time >300 hours.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.
VFL 1 x AAA alkaline. Run time >40 hours.

We gladly adjust kits to meet your exact needs.

Pocket Fiber Optic Power Meter KI 9600A-InGaAs

• Simple shirt-pocket size power meter
• InGaAs detector
• Ideal for transmission installers

Includes:

Calibration Certificate ILAC/NATA Compliant

Quality Assurance Certificate

Quick Reference Guide QRG

SC/SC Through Connector OPT046

Wrist Strap / Lanyard

FiberSafe Microscope KI6610

• 200x microscope for inspection of SM, MM, and MPO networks
• Best quality, image & eye safety
• Wide range of interchangeable adaptors

Includes:

2.5 mm Universal Connector Adapter for KI6610 Series Microscope. OPT681

Instrument User Manual

Quality Assurance Certificate

USB Cable (Micro)

Wrist Strap / Lanyard

Visual Fault Locator Pen KI 6358

• VFL visual fault locator pen
• Class 1 laser, eye-safe
• Rugged with AAA batteries

Includes:

Instrument User Manual

LC Hybrid Connector Adapter OPT076

LC Simplex, metal body



1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors



VFL Adapter 2.5mm Male to 1.25mm Female OPT189

A popular adapter so that a VFL pen with 2.5 mm universal connector can be used with LC / other 1.25mm ferrule connectors

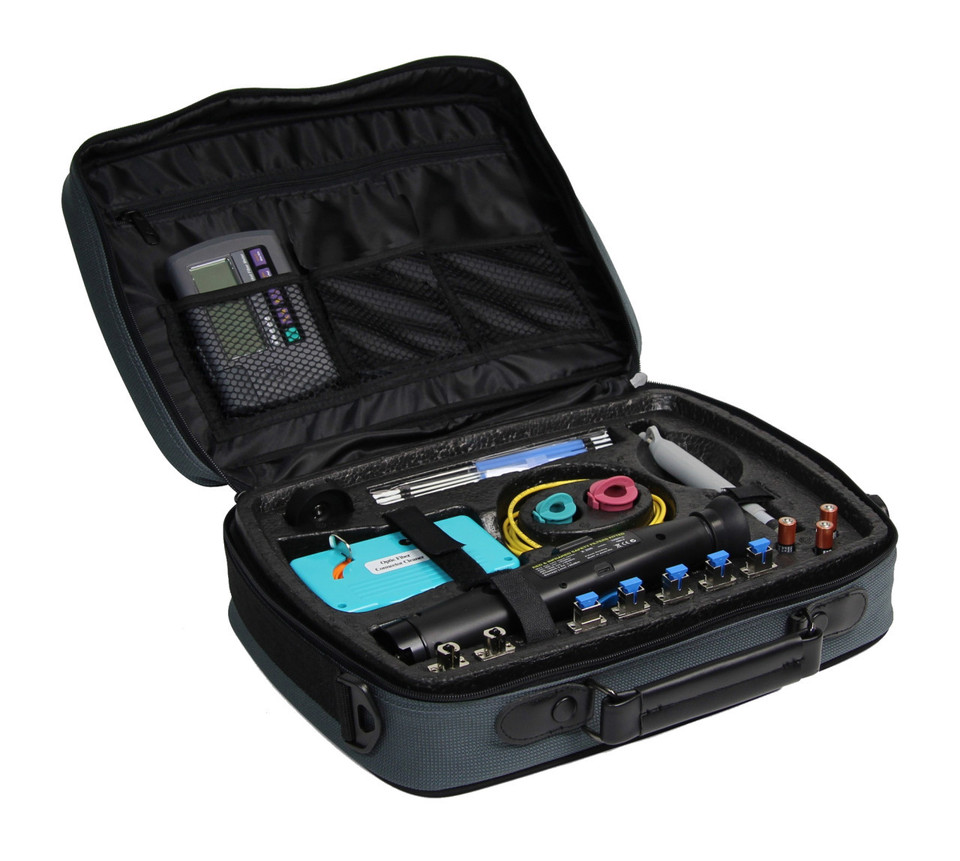

Semi-Rigid Carry Case for Test Kits OPT155

• Sturdy carry case made of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper, carry strap.
• Accommodates any three KI9000 instruments.
• Comfortable to use
• Space for additional (not supplied): batteries, mandrel wraps, test leads, connector adaptors, documentation, instruments.

Includes:

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

Puffer Brush TOOL BRUSH-01

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03
