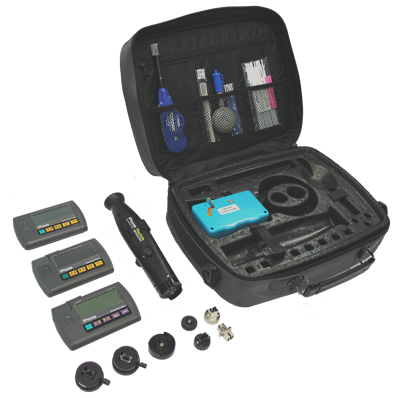

MPO TEST, INSPECT & CLEAN KIT SM MM, KI-TK035
A test inspect & cleaning kit, ideal for low to modest volume on MPO / MTP™, LC, SC and all fiber types. Inexpensive with good accuracy.
MPO test, inspection & cleaning applications
- Optical loss on SM fiber at 1310 & 1550 nm, 40 dB range.
- Optical loss on MM fiber at 850 & 1300 nm, 20 dB (@ 62.5um) range, EF compliant.
- This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
- Reporting software for cable loss (manual data entry).
- Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 37 dB range.
- Optical connector end-face inspection microscope x200.
- Optical connector cleaning tools & materials.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary
SC, LC, MPO-PC & MPO-APC interchangeable connector adapters.
Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO PC/APC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.
We gladly adjust kits to meet your exact needs.
Additional:
Interchangeable connector adapters
General test leads & cleaning materials
VFL pen
Video camera
Alternative:
Video microscope
Kit contents
Optical light sources
KI9822A
- Economical shirt-pocket size source
- Laser source for SM testing
- Low-skill TamperLock mode
KI9812A
- Economical shirt-pocket size source
- LED source for MM, POF testing
- Low-skill TamperLock mode
- EF compliant
- SC Through Connector OPT046
- Quick Reference Guide QRG
- Quality Assurance Certificate
- Mandrel Wrap Filters, 50 & 62.5 um OPT701
- SC Through Connector OPT046
- Quick Reference Guide QRG
- Quality Assurance Certificate
Interchangeable connectors
OPT076
LC Simplex, metal body
OPT201
SC
OPT224
1.25 mm Universal. Also fits duplex LC
OPT227
MTP™ / MPO 12 x n style with central key. For XL power meters with a 5 or 7 mm detector
We also have Standards Compliant Test Quality MPO leads
OPT677
MPO / MTP™ 12 x n style (not for x400 scope) Incorporates traversing knob.
OPT678
MPO / MTP™ 12 x n style APC (not for x400 scope) Incorporates traversing knob.
OPT682
Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors
Optical power meters
KI9600XL-GE5
- Simple shirt-pocket size power meter
- Large area detector for MPO testing
- Low-skill TamperLock mode
- Ideal for transmission installers
- Wrist Strap / Lanyard for KI Products
- Calibration Certificate ILAC/NATA Compliant
- Quality Assurance Certificate
- Quick Reference Guide QRG
Fiber inspection scope

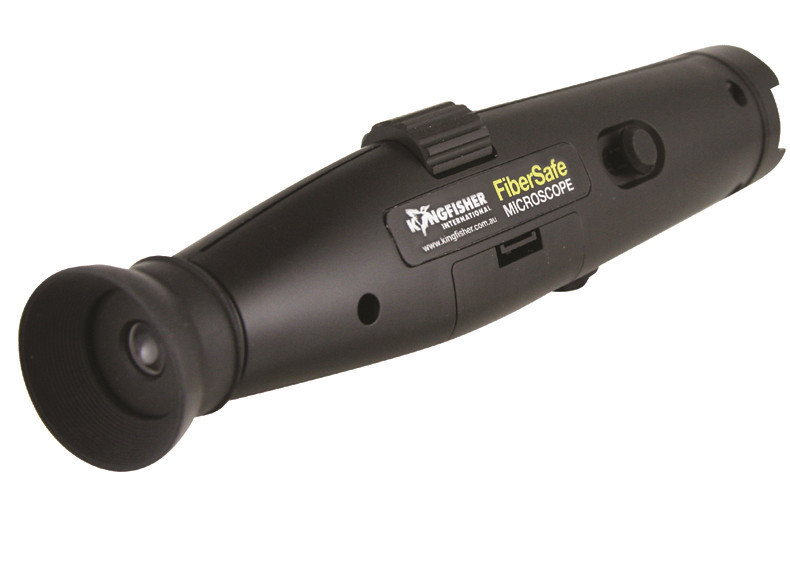

KI6610
- 200x microscope for inspection of SM, MM, and MPO networks
- Best quality, image & eye safety
- Wide range of interchangeable adaptors
- Many helpful features
- 2.5 mm Universal Adaptor for KI66xx Microscope OPT681
- Wrist Strap / Lanyard for KI Products
- USB Cable (Micro)
- Instrument User Manual
- Quality Assurance Certificate
Accessories
OPT401
A classic MPO endface cleaner for both mated and unmated connectors
TOOL CLEAN-05A
Sticks to clean MPO end face, particularly around the alignment pins
(Price shown is for per stick, sold in 10-stick pack)
OPT155
- Carry case sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper, carry strap.
- Accommodates any three KI9000 style instruments.
- This case is both sturdy and comfortable to use, and is the same size as the OPT153 "Small Fiber Test Kit"
- Space for additional (not supplied): batteries, mandrel wraps, test leads, connector adaptors, additional documentation.
- Stick-Type Cleaner 2.5 mm TOOL CLEAN-03
- Stick-type Cleaner 1.25 mm TOOL CLEAN-04
- Fiber Connector Cleaner Cartridge TOOL CLEAN-09A
- Puffer Brush TOOL BRUSH-01
