MM Fiber Test, Inspect & Clean Kit KI-TK032
Typical test, inspection & cleaning applications
- Optical power at 8 calibrated λ, -60 to +10 dBm range.
- Optical loss on MM fiber 850 / 1300 nm, 40 dB range (@ 62.5um), EF compliant.
- Optical loss on SM fiber at 1300 nm, 28 dB range.
- Reporting software for cable loss (manual data entry).
- Optical continuity / tone testing & 12 fiber Multi-Fiber ID, 40 dB range.
- Optical connector end-face inspection microscope x200.
- Optical connector cleaning tools & materials.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary
- SC & LC interchangeable connector adaptors.
- Meter accepts PC & APC polish. Source accepts PC polish.
- Microscope accepts SC, LC & most 2.5 or 1.25mm PC ferrules. Also OK for occasional APC use.
- Meter 2 x AAA alkaline. Run time >300 hours.
- Source 2 x AAA alkaline. Run time >40 hours.
- Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.
Kit contents
Optical light sources
KI9812A
- Economical shirt-pocket size source
- LED source for MM, POF testing
- Low-skill TamperLock mode
- EF compliant
KI9812A accessories:
- Mandrel Wrap Filters, 50 & 62.5 um OPT701
- SC Through Connector OPT046
- Quick Reference Guide QRG
- Quality Assurance Certificate
Optical power meters
KI9600A-GE
- Simple shirt-pocket size power meter
- Ge detector for MM & SM testing
- Low-skill TamperLock mode
- Ideal for transmission installers
KI9600A-GE accessories:
- SC Through Connector OPT046
- Wrist Strap / Lanyard for KI Products
- Calibration Certificate ILAC/NATA Compliant
- Quality Assurance Certificate
- Quick Reference Guide QRG

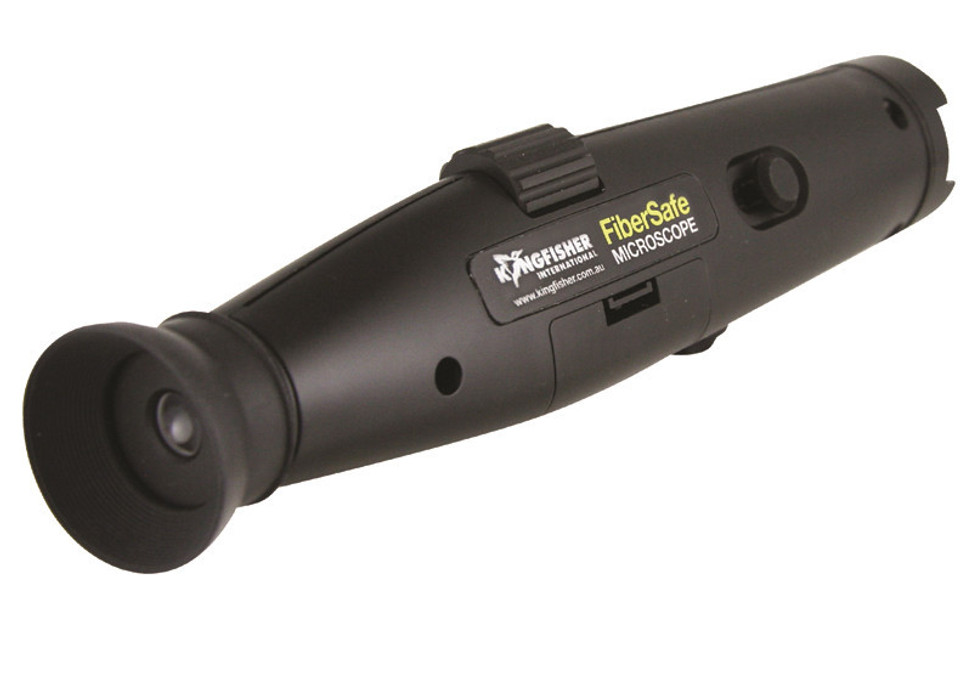

Fiber inspection scope
KI6610
- 200x microscope for inspection of SM, MM, and MPO networks
- Best quality, image & eye safety
- Wide range of interchangeable adaptors
- Many helpful features
KI6610 accessories:
- 2.5 mm Universal Adaptor for KI66xx Microscope OPT681
- Wrist Strap / Lanyard for KI Products
- USB Cable (Micro)
- Instrument User Manual
- Quality Assurance Certificate
Accessories
OPT155
- Carry case sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper, carry strap.
- Accommodates any three KI9000 style instruments.
- This case is both sturdy and comfortable to use, and is the same size as the OPT153 "Small Fiber Test Kit"
- Space for additional (not supplied): batteries, mandrel wraps, test leads, connector adaptors, additional documentation.
OPT155 accessories:
- Stick-Type Cleaner 2.5 mm TOOL CLEAN-03
- Stick-type Cleaner 1.25 mm TOOL CLEAN-04
- Fiber Connector Cleaner Cartridge TOOL CLEAN-09A
- Puffer Brush TOOL BRUSH-01
