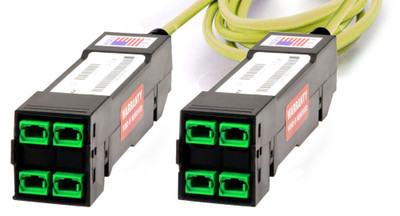

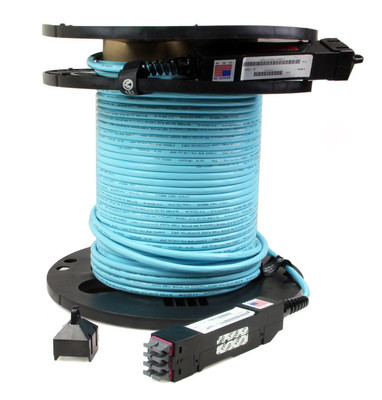

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.
| Connector Side A
||MTP/APC Elite Low Loss 24 Fiber (Male)||Connector Side B
||MTP/APC Elite Low Loss 24 Fiber (Male)|
|Ferrule Type Side A
|Ferrule Type Side B
|Port Count Side A
||6||Port Count Side A||6|
|Insertion Loss Maximum Side A
||≤0.35dB||Insertion Loss Maximum Side B
|Insertion Loss Typical
||0.10dB||Insertion Loss Typical
|Return Loss||≥60dB||Return Loss||≥60dB|
|Fiber Count||144||Fiber Grade||G.657.A1 (Compatible with G.652.D)|
|Polarity||Rollover (Type B)||Cable Outer Diameter||9.9mm|
|Cable Jacket||OFNP Plenum||Sub Unit Outer Diameter||2.0mm|
|Bend Radius, No Load
||10x cable overall diameter||Bend Radius, Load
||15x cable overall diameter|
||1 Gb Distance Max.
||10 Gb Distance Max.
|1310nm||> 25,000 Meters||1310nm||10,000 - 25,000 Meters|
|1550nm||> 40,000 Meters||1550nm||40,000 Meters|
|Operating Temperature||0° to 70°C (32° to 158°F)||Storage Temperature||-40° to 70°C (-40° to 158°F)|
