5-Channel Yellow Jacket® AMS® Accessibility Ramp Kits for 1" Lines. Made in the USA.
5-Channel Yellow Jacket® AMS® (Advanced Modular System) Accessibility Ramp Kits feature a gradual slope and slip-resistant surface to ensure a safe crossing point for carts, forklifts, vehicles with small wheels and heavy trucks. In addition, each Checkers™ Accessibility Ramp system is manufactured to meet ADA and DDA compliant specifications.
AMS Kit 1 Includes:
• 2 Yellow Ramps
• 4 Blue Side Ramps
• 2 AMS Center Sections
• 2 Interconnects (use to connect to
Guard Dog or Yellow Jacket 5-channel)
AMS Kit 2 Includes:
• 2 Yellow Ramps
• 4 Blue Side Ramps
• 2 AMS Center Sections
Note: Male and female interconnects are
required to connect to Dog Bone Connectors;
use YJ5I-125-M-Y/B and YJ5I-125-F-Y/B.
AMS Kit 3 Includes:
• 2 Yellow Ramps
• 1 AMS Center Section
Note: Side ramps and male and female interconnects
are required to connect to Dog Bone Connectors;
use WSA-125-BFF-BLU, WSA-125-BFM-BLU,
YJ5I-125-M-Y/B, and YJ5I-125-F-Y/B.

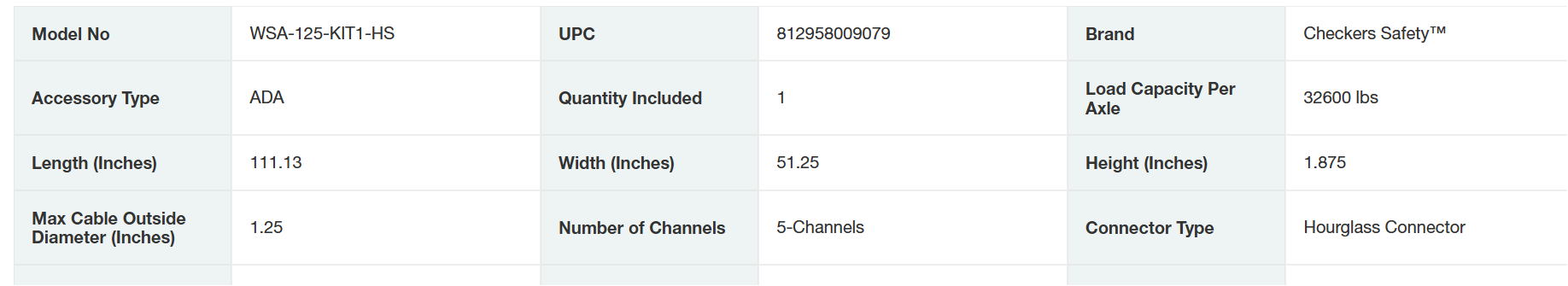

Kit 1 Specifications

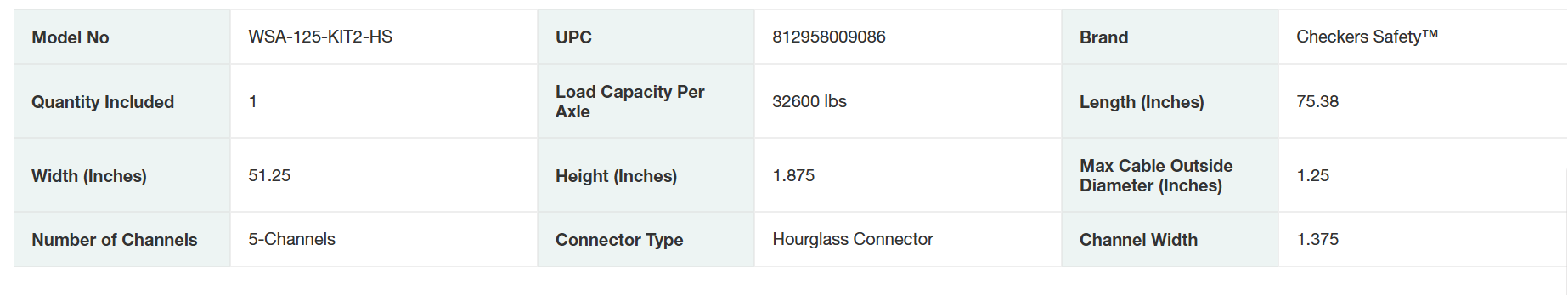

Kit 2 Specifications

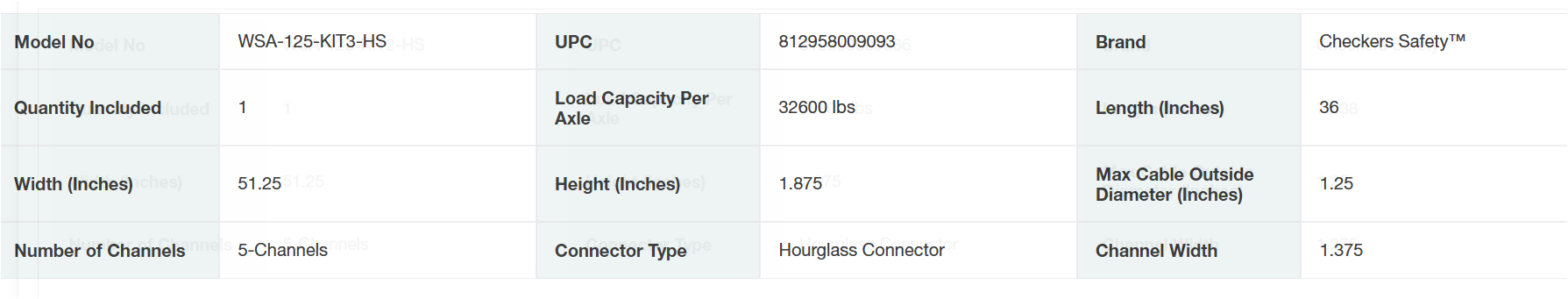

Kit 3 Specifications
|
