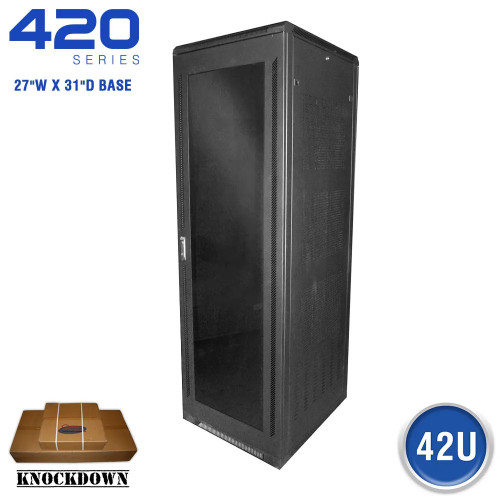

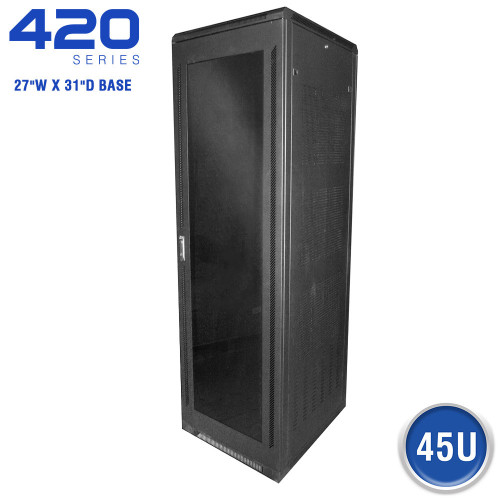

420 Series (27″W X 31″D) Acrylic Door

Our 420 series 19'' mount floor cabinets feature a wide access and 32'' deep design for applications where deep dimensional equipment mounting requirements and complex internal wire management is needed. Available in multiple heights, these enclosures are manufactured to ANSI/EIA RS310-D standards. All 420 series enclosures feature louvered side and rear removable keyed panels offering easy access to equipment and cabling.

Stock No.
RMS
OVERALL HEIGHT
OVERALL WIDTH
OVERALL DEPTH
INTERNAL HEIGHT
INTERNAL DEPTH
LOAD CAPACITY
FORMAT
FE4219-40
40
6'
27.5''
32''
70''
29.5''
800LBS
19''
FE4219-45
45
7'
27.5''
32''
78.75''
29.5''
900LBS
19''

Product Features

  • All 420 series enclosures come complete with dual fans
  • EIA spaced #12-24 threading, casters, leveling feet
  • Shipped fully assembled
  • Front Door: Smoked Acrylic - With Ventilated Steel Frame

Specifications

  • Structure: Cold Rolled Steel - 16 AWG
  • Side and Rear Panels: Cold Rolled Steel / 16 AWG (6 & 7Ft. H)
  • Base: Cold Rolled Steel - 14 AWG
  • Rails: Laminated Steel - 16 AWG / Tapped
  • Paint: Electrostatic Microfinish
