Applications

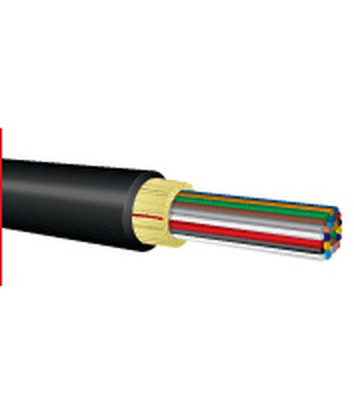

Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required. Comes in BX & DX Series.The main difference between BX and DX wiring is the type of insulation material used. BX wiring is insulated with aluminum sheath, whereas DX wiring, is insulated with a hard plastic material.
Features
-Extremely strong, lightweight, rugged, survivable tight-buffered cables are designed for broadcast field use and commercial applications
-Compact, round cable design for ease of transportation and deployment
-Core-locked jacket for improved mechanical performance
-Designed for use in adverse environments where reduced size and weight are important
-Helically stranded cable core for flexibility, survival in difficult pulls, and exceptional mechanical protection for the optical fibers
-Cables have been tested and are in use in broadcast data communications applications worldwide
-Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
-Suitable for industrial, mining and petrochemical environments; chemical resistant
-Crush resistant and resilient with a thick layer of aramid strength members
-Polyurethane jacketed for abrasion, cut and chemical resistance
-Most commonly used with ruggedized multiway military tactical field connectors, for maximum connector retention (400lbs.)
-Tactical Polyurethane (C) outer jacket materials is standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
OCC PROVIDED OPTIONS
-Broadcast cables pre-spooled on deployable reels for a ready-to-use product
-Broadcast cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request
